Product Details

Product Description

◆ XM (R) distribution box full name is XM (R) series of lighting distribution box
◆ XM (R) distribution box is fully absorbed in the industry's latest design concept, combined with a wide range of market research based
on the International Electrotechnical Commission IEC493-1 developed from.
◆ This equipment complies with the International Electrotechnical Commission IEC439-1 "Low-voltage switchgear and control equipment",
China GB7251-1997 "Low-voltage switchgear and control equipment" and CQC-compliant CCC national compulsory certification

Product Features

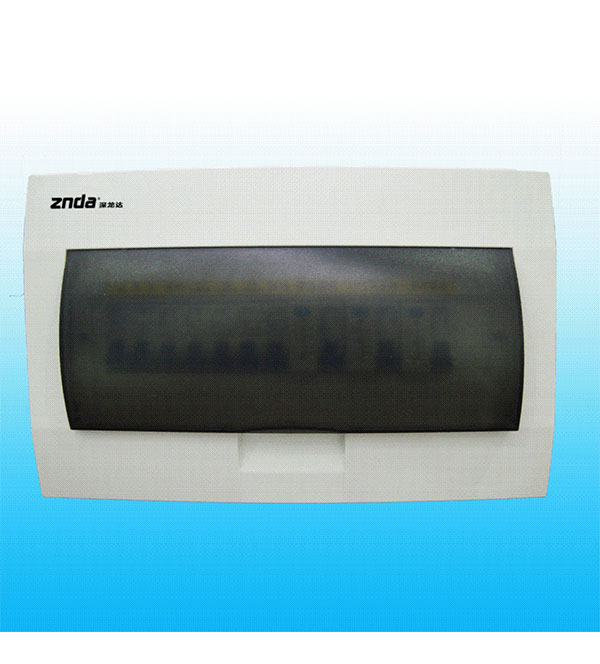

◆ XM (R) distribution box shell with 1.0mm thick galvanized steel plate bending welding composition, together with ABS plastic frame and transparent cover,
handsome in appearance, the unique design of the shell, so that the line can be on and out , Can also go up and down

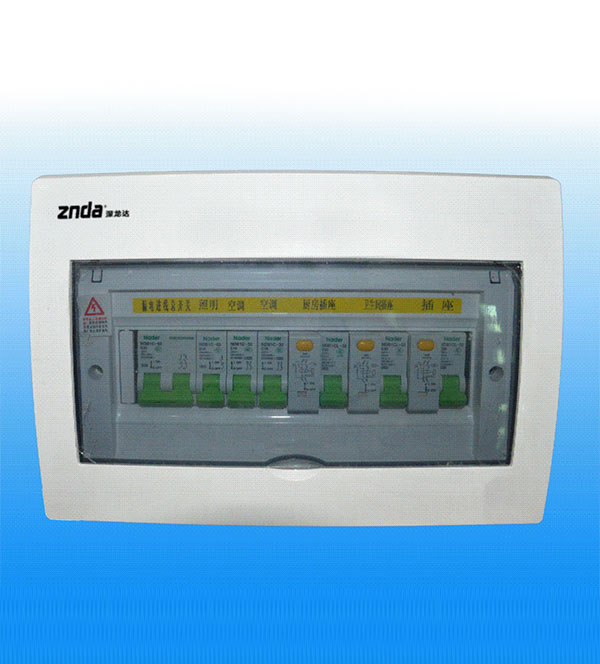

◆ XM (R) distribution box can be installed MG, ABB, Siemens and other series of 18mm miniature circuit breakers, and the use of mounting rails
and circuit break with the innovative structure of rotation
◆ The IP rating of this device is IP4X and can be changed to IP as needed

Scope

◆ This equipment is suitable for large buildings, high-rise buildings, hospitals, theaters, stadiums, underground facilities, industrial and mining
enterprises, as 50-60Hz 500V voltage below the load current is not greater than 100A single-phase and three-phase power, lighting.
Motor circuit control, overload, leakage and know the road protection purposes

Use Environment

◆ the ambient air temperature is not higher than +40 ℃, not less than -20 ℃; and in 24h the average temperature is not higher than +35 ℃
◆ air clean, relative humidity at a maximum temperature of +40 ℃ is not more than 70%, at a lower temperature to allow a higher relative humidity,
such as +25 ℃ when 95%, but should be taken into account due to temperature changes There may be occasional proper condensation
◆ altitude of not more than 2000m
◆ vertical installation tilt is not greater than 5 ℃
◆ transport and storage temperature: -25 ℃ ~ +55 ℃, in a short time (not more than 24h) can reach +70 ℃
◆ no explosion hazard medium, and the media is not enough to corrode the metal and damage the insulation of the gas and dust, no rain,
snow invasion of the place
◆ Note: When the actual conditions of use and this chapter does not match, by the user and the manufacturing company to negotiate.
