Product Details

Product Description

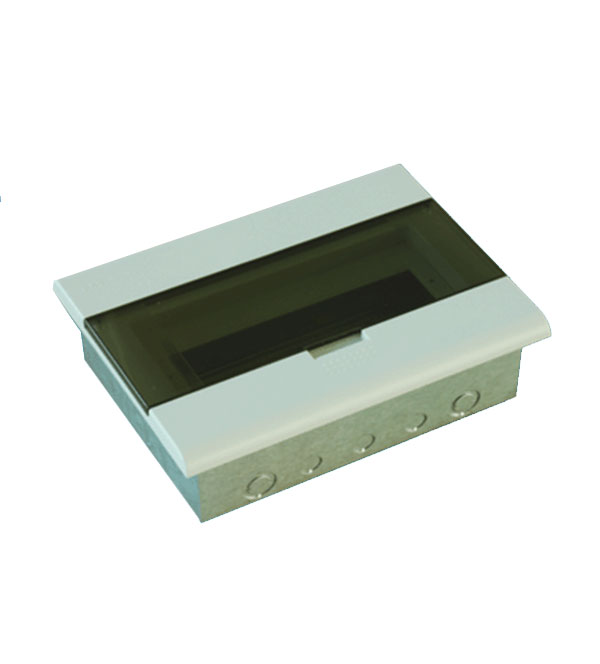

◆ XM (R) distribution box full name is XM (R) series of lighting distribution box
◆ This equipment complies with the International Electrotechnical Commission IEC439-1 "Low-voltage switchgear and control equipment",
China GB7251-1997 "Low-voltage switchgear and control equipment" and CQC-compliant CCC national compulsory certification

Product Features

◆ XM (R) distribution box shell with 1.0mm thick galvanized steel plate bending welding composition, together with ABS plastic frame and transparent cover
◆ modeling beautiful and generous, unique design of the shell, so that the entry and exit can be on the out, but also up and down
◆ M (R) distribution box can be installed MG, ABB, Siemens and other series of 18mm miniature circuit breakers, and the use of mounting rails
and circuit break with the innovative structure of rotation

Scope

◆ This equipment is suitable for large-scale construction, high-rise buildings, hospitals, theaters, stadiums, underground facilities,
industrial and mining enterprises
◆ as 50-60Hz 500V voltage below the load current is not greater than 100A single-phase and three-phase power, lighting ℃
◆ motor circuit control, overload, leakage and know the road protection purposes

Use Environment

◆ the ambient air temperature is not higher than +40 ℃, not less than -20 ℃; and in 24h the average temperature is not higher than +35 ℃
◆ air clean, relative humidity at a maximum temperature of +40 ℃ is not more than 70%, at a lower temperature allows a higher relative humidity
◆ For example, 95% at + 25 ° C, but should be taken into account due to temperature changes may occasionally produce the appropriate condensation
◆ altitude of not more than 2000m
◆ Transport and storage temperature: -25 ℃ ~ +55 ℃, in a short time (not more than 24h) can reach +70 ℃
◆ no explosion hazard medium, and the media is not enough to corrode the metal and damage the insulation of the gas and dust, no rain,
snow invasion of the place
◆ Note: When the actual conditions of use and this chapter does not match, by the user and the manufacturing company to negotiate.
