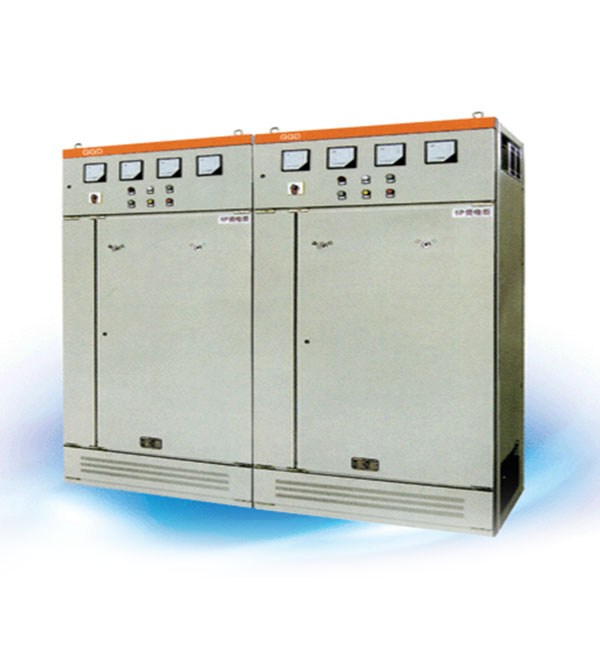

GGD type-Shenzhen Junan Electrical Equipment Co., Ltd

Product Details

Use

◆ GGD AC low voltage distribution cabinet for substation, power plants, factories and mines and other power users of the exchange of 50Hz
◆ Rated working voltage 380V, rated working current of 1000-3150A distribution system
◆ as power, lighting and power distribution equipment, power conversion, distribution and control purposes.
◆ GGD AC low-voltage distribution cabinet is based on the Ministry of Energy, the majority of power users and design departments, in accordance with the safety,
economic, reasonable and reliable design of the new low-voltage distribution cabinet.
◆ products with high breaking capacity, good thermal stability, electrical program flexible, convenient combination, series, practical, new structure, high degree of protection.

Structure Features

◆ GGD AC low-voltage distribution cabinet cabinet in the form of universal cabinet, the framework with 8MF cold-formed steel local welding assembly
◆ and 20-mode mounting holes, high common coefficient.
◆ GGD cabinet fully consider the heat problem. In the cabinet at both ends of the upper and lower ends have different number of heat slot
◆ When the cabinet electrical components heat, the heat rise
◆ through the upper slot discharge, and cold air constantly from the bottom of the slot into the cabinet, so that the sealed cabinet from bottom to top
to form a natural ventilation, to achieve the purpose of heat.
◆ GGD cabinet in accordance with the requirements of modern industrial product design, the use of golden section of the design of the cabinet shape
and the size of the various parts of the division
◆ make the whole cabinet nice, new look.
◆ cabinet cover can be removed when needed to facilitate the assembly and adjustment of the main bus
◆ four corners of the top of the cabinet with rings, for lifting and shipping.
◆ cabinet protection class IP30, the user can also be in accordance with the requirements of the environment in the IP20-IP40 between the choice.
