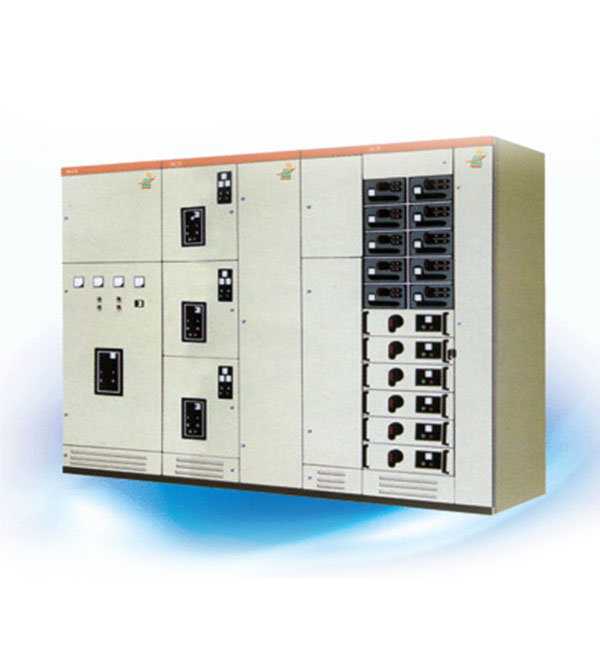

GCS (landing)-Shenzhen Junan Electrical Equipment Co., Ltd

Product Details

Use

◆ GCS low-voltage withdrawable switchgear used in three-phase AC frequency of 50Hz, rated working voltage of 400V (690V)
◆ rated current of 4000A and below, the power supply system as a power, power distribution and motor centralized control, capacitance compensation
◆ Widely used in power plants, petroleum, chemical, metallurgy, textile, high-rise buildings and other places, can also be used in large-scale power plants,
petrochemical systems and other high degree of automation requirements and computer interface.
◆ Implementation of the standard: This product complies with GB7251.1-1997 "low-voltage switchgear and control equipment" and JB / T9661-1999 "low-voltage
withdrawable switchgear" requirements

Structure Features

◆ frame with 8MF type open steel, the main frame installed on the modulus of E = 20mm and 100mm Φ9.2mm mounting holes,
making the frame assembly flexible and convenient.
◆ switchgear of the functional rooms are isolated from each other, the compartment is divided into functional unit room,
bus room and cable room. The role of each room is relatively independent.
◆ horizontal bus using the cabinet after the flat arrangement, in order to enhance the ability of the bus anti-electric power,
is to make the main circuit with high short-circuit strength of the basic measures.
◆ cable compartment design makes the cable, the next is very convenient to access.
◆ The height of the drawer is 160mm. The drawer changes only in height dimensions, and their width and depth dimensions remain unchanged.
The drawer of the same functional unit has good interchangeability. Unit circuit rated current 400A and below.
◆ drawer panel with points, together, test, out of the location of the obvious signs. The drawer unit is equipped with a mechanical interlock.
1 drawer unit as the main body, at the same time with the extraction and fixed, can be mixed combination, any use.
